Adapters
Outbound service dependencies — every call Warp makes to another service. The inbound mirror is Endpoints.

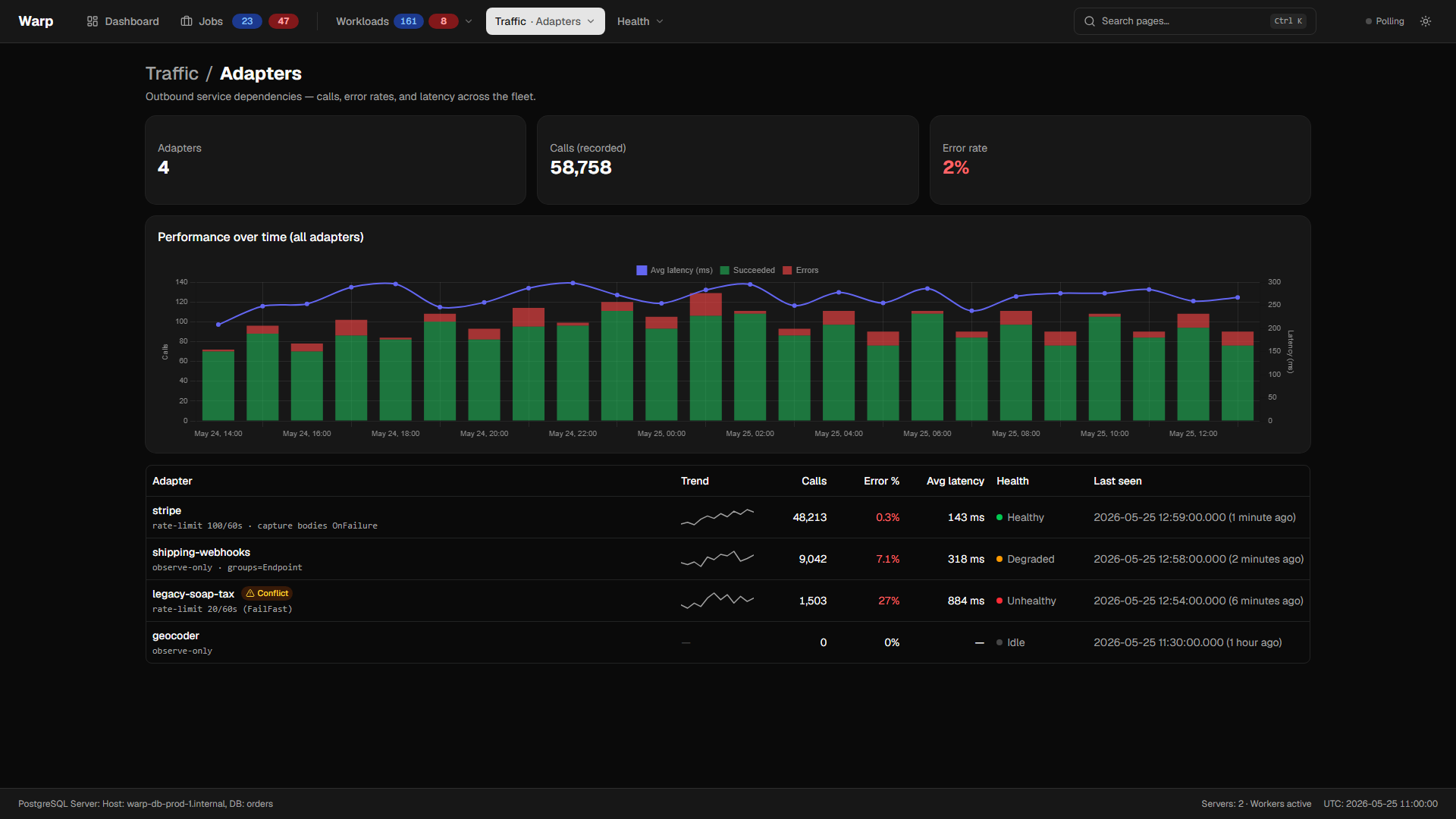

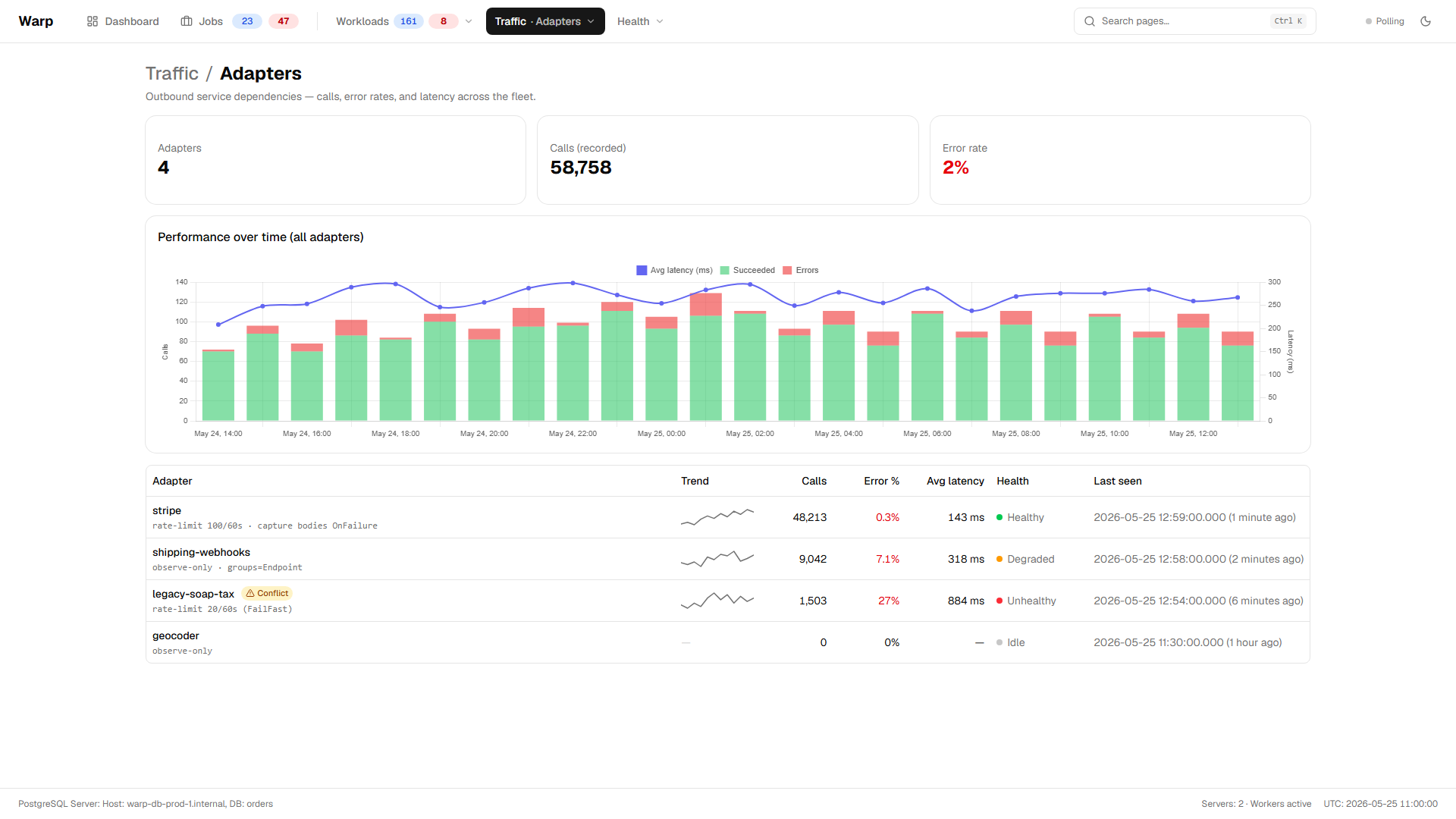

The list gives one row per adapter: a sparkline Trend, Calls, Error %, Avg latency, a Health pill, and Last seen. Three tiles above it summarise the fleet — adapter count, recorded calls, and overall error rate.
The page is always available (IAdapterQueryService is registered by AddWarp itself), so a
dashboard-only process serves it without running a server. Rows only appear once something calls
IWarpAdapters.BeginCall — directly, or through the Warp.Adapters.Http / Warp.Adapters.Refit
bindings.
Detail page
Click an adapter for its detail:
- Total calls, Error rate and Avg latency tiles, plus a performance chart over time.
- Operations — the API-contract axis (
GetOrders,payment.completed). An operation red across all groups points at a caller-side bug. - Groups — the runtime who/where axis (destination, tenant, region). A group red across all operations
points at the counterparty. The card is labelled with the adapter's own
groupLabel. - Recent calls — individual call rows, each opening a call detail with captured headers and bodies.
- Records — what this adapter captures (request body, response body, headers) and its rate limit.
Counts, error rate and average latency come from durable Counter → Statistic aggregates, so they
survive call-log cleanup. Only the recent-calls list and last-failure timestamps read raw rows, and those
degrade to empty once retention sweeps them.
Capture and redaction
Metadata is always recorded. Request bodies, response bodies and headers are each independently
None / OnFailure / Always, truncated, and passed through the user-owned RedactedHeaders denylist —
Authorization, Cookie and friends show as [REDACTED]. Payloads may contain user data, so treat this
page as PII-bearing and set the capture modes deliberately.
