Dashboard Authorization

The dashboard is a set of routed endpoints, so you gate it the way you gate any other part of your app — with ASP.NET Core authorization. MapWarpDashboard returns an endpoint builder covering the SPA shell, the REST API and the SignalR hub, so one call protects all three:

app.MapWarpDashboard("/warp").RequireAuthorization("WarpDashboard");

By default (no convention applied) the dashboard is open to everyone.

Handing the decision to ASP.NET is what makes the two kinds of "no" behave differently: a signed-out visitor is challenged, so they reach your sign-in page, while a signed-in visitor who lacks the permission is forbidden (403, or your AccessDeniedPath). Your authorization requirements are also async, so a permission check that reads the database is an ordinary await.

Choosing a shape

Your situation	What to write
Local development, no gate	`app.MapWarpDashboard("/warp");`
The app already has an identity system	`app.MapWarpDashboard("/warp").RequireAuthorization("YourPolicy");`
No identity system — want a login page	`AddWarpDashboard().AddBuiltInLogin<T>()` + `.RequireWarpDashboardLogin()`
Localhost only	`AddWarpDashboard()` + `.RequireLocalRequests()`

Gating on your own policy

Nothing from Warp is needed — the dashboard endpoints take your policy like any other endpoint:

builder.Services.AddAuthentication(CookieAuthenticationDefaults.AuthenticationScheme)
    .AddCookie(options =>
    {
        options.LoginPath = "/login";
        options.AccessDeniedPath = "/denied";
    });

builder.Services.AddAuthorizationBuilder()
    .AddPolicy("WarpDashboard", policy => policy.RequireRole("Admin"));

var app = builder.Build();

app.UseAuthentication();
app.UseAuthorization();

app.MapWarpDashboard("/warp").RequireAuthorization("WarpDashboard");

A permission that lives in your database becomes an authorization handler — natively async, unit-testable, and identical to how the rest of your app is gated:

public class WarpDashboardHandler : AuthorizationHandler<WarpDashboardRequirement>
{
    private readonly IPermissionService _permissions;

    public WarpDashboardHandler(IPermissionService permissions) => _permissions = permissions;

    protected override async Task HandleRequirementAsync(
        AuthorizationHandlerContext context,
        WarpDashboardRequirement requirement)
    {
        if (await _permissions.HasAsync(context.User, "warp.dashboard"))
        {
            context.Succeed(requirement);
        }
    }
}

:::important Pipeline order UseAuthentication() and UseAuthorization() must be in the pipeline. If you call neither explicitly, WebApplication adds them for you when the matching services are registered — but it inserts them ahead of your own middleware, so call them yourself if any middleware of yours needs to run first. :::

XHR and expired sessions

The dashboard is a single-page app that talks to /warp/api/... over XHR. A challenge answered with a redirect to an identity provider is not something a fetch can follow, so configure your scheme to answer API paths with a status code — the standard pattern for an app that serves both pages and APIs:

.AddCookie(options =>
{
    options.LoginPath = "/login";
    options.Events.OnRedirectToLogin = context =>
    {
        if (context.Request.Path.StartsWithSegments("/warp/api"))
        {
            context.Response.StatusCode = StatusCodes.Status401Unauthorized;
            return Task.CompletedTask;
        }

        context.Response.Redirect(context.RedirectUri);
        return Task.CompletedTask;
    };
});

The dashboard handles the rest. Every API response carries an X-Warp-Api header, so the SPA can tell "the Warp API answered" from "something intercepted this call and returned its own 200" — a sign-in redirect the browser transparently followed. On that, on a 401, or on a request killed outright by CORS (which is how a cross-origin challenge presents), it reloads once, turning the dead XHR back into a navigation your challenge can act on. A 403 deliberately does not trigger it: the caller is signed in and forbidden, so a re-challenge would return the same answer and loop.

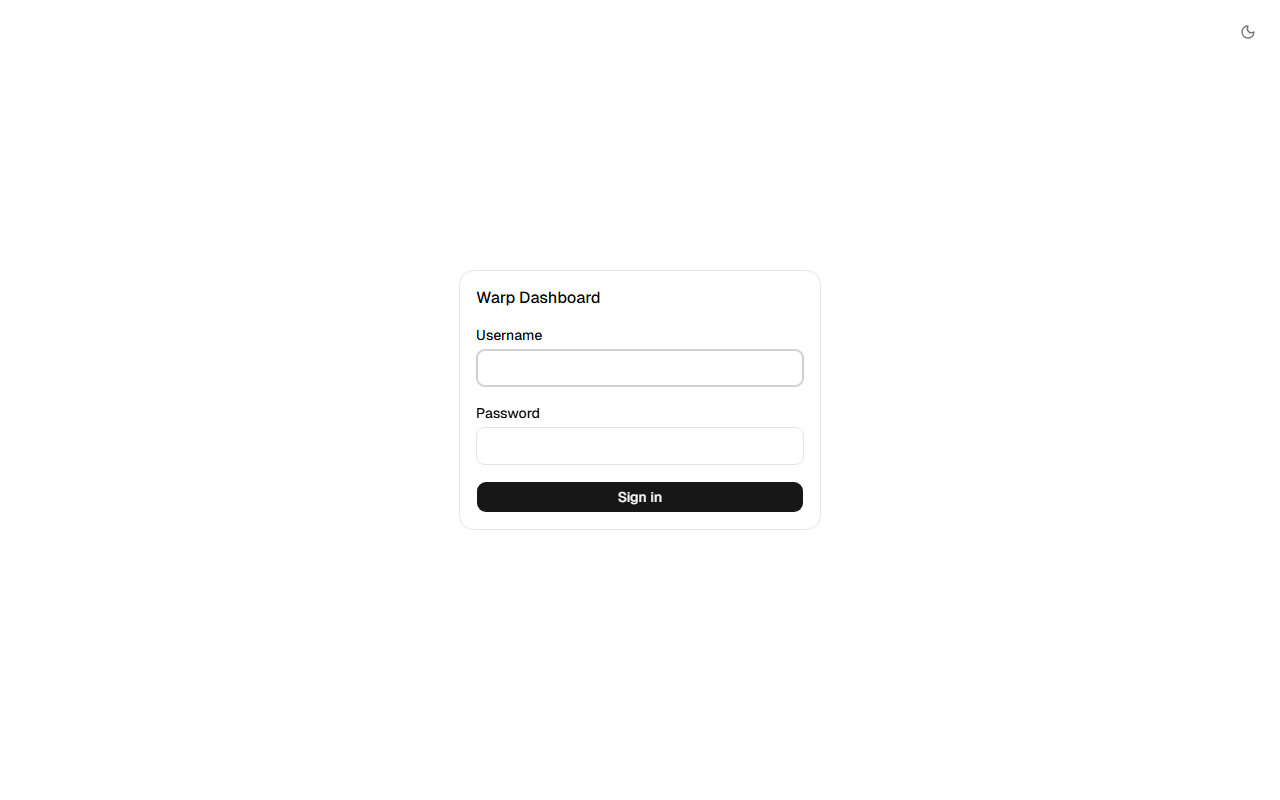

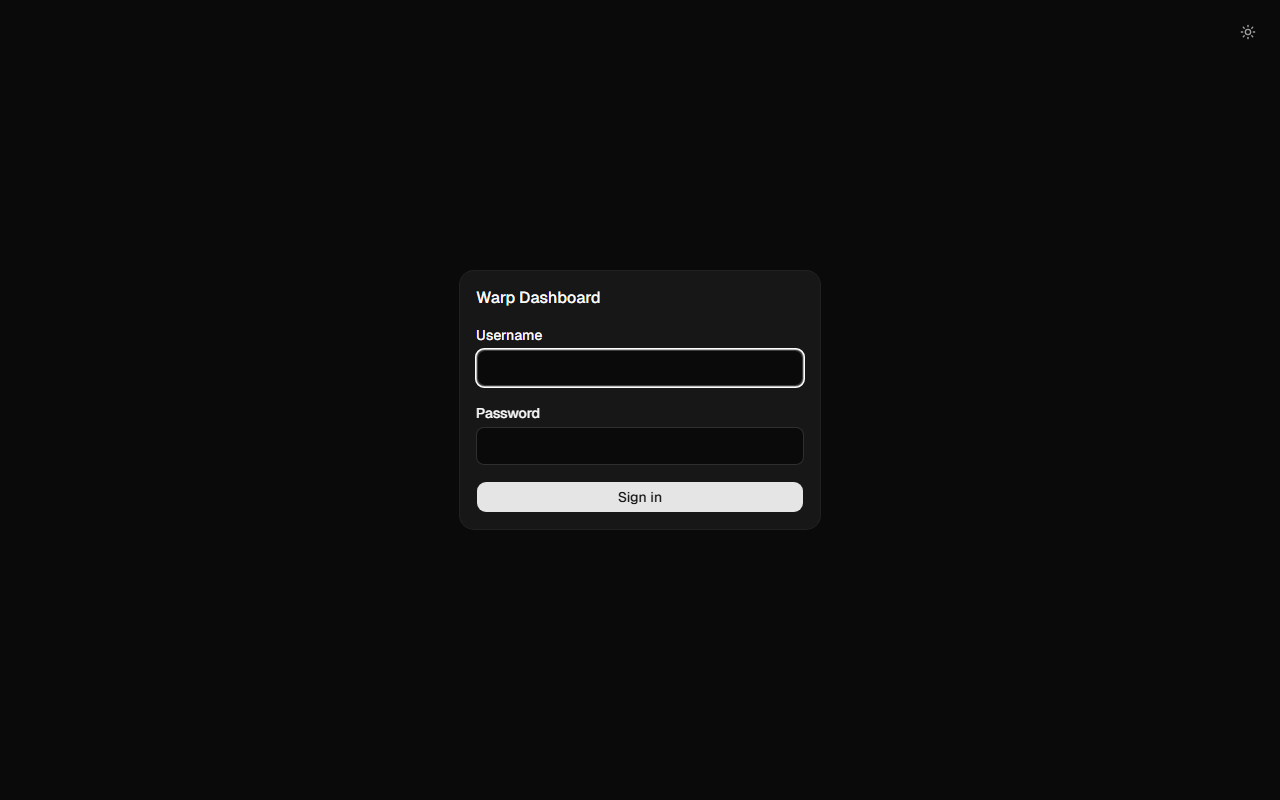

Warp can serve its own login page — no identity system needed. It registers a real cookie authentication scheme, so sessions, expiry and sign-out are ASP.NET's, not a bespoke cookie.

builder.Services.AddWarpDashboard().AddBuiltInLogin<MyCredentialValidator>();

var app = builder.Build();

app.MapWarpDashboard("/warp").RequireWarpDashboardLogin();

Registering the built-in login gates the dashboard on its own — RequireWarpDashboardLogin() is explicit rather than required, and applying it twice is harmless. Otherwise the half-configured shape (services registered, convention forgotten) would compile, render a login page, and serve every API route anonymously.

If you apply a policy of your own — .RequireAuthorization("YourPolicy") or .RequireLocalRequests() — it replaces the built-in login rather than stacking on top of it, and the SPA stops offering the login form. Requiring both would turn away a caller who satisfies your policy for lacking a Warp cookie your setup gives them no way to obtain.

AddBuiltInLogin<T> registers your validator as Scoped, so it can inject a DbContext:

public class MyCredentialValidator : IWarpCredentialValidator
{
    private readonly AppDbContext _db;

    public MyCredentialValidator(AppDbContext db) => _db = db;

    public async Task<bool> ValidateAsync(string username, string password)
    {
        var user = await _db.Users.FirstOrDefaultAsync(u => u.Username == username);
        return user != null && BCrypt.Verify(password, user.PasswordHash);
    }
}

Session lifetime is configurable:

builder.Services.AddWarpDashboard().AddBuiltInLogin<MyCredentialValidator>(options =>
{
    options.ExpireTimeSpan = TimeSpan.FromHours(8);
    options.SlidingExpiration = true;
    options.CookiePath = "/warp";   // defaults to the dashboard's route prefix
});

How it works

The REST API and the hub are protected; the SPA shell stays anonymous — the shell is the login page, so gating it would challenge the page that collects the credentials
The SPA posts credentials to /warp/api/auth/login, which calls your validator and signs the user in
Warp sets an HTTP-only, SameSite=Strict cookie whose expiry is enforced server-side
API requests carry the cookie; a 401 sends the SPA back to the login form
POST /warp/api/auth/logout signs the user out

Localhost only

builder.Services.AddWarpDashboard();

var app = builder.Build();

app.MapWarpDashboard("/warp").RequireLocalRequests();

A remote caller gets 403 — signing in cannot change the answer, so there is nothing to challenge. This covers the shell, the API and the hub.

The same mechanism is available for any rule that signing in cannot satisfy — an API-key check, an allowlist — even in a host with no identity provider at all. Pin WarpDashboardDefaults.DenyScheme on the policy and its denials render as 403 instead of failing on a challenge that has no scheme to use:

builder.Services.AddWarpDashboard();   // registers the deny scheme

builder.Services.AddAuthorizationBuilder()
    .AddPolicy("WarpApiKey", policy => policy
        .AddAuthenticationSchemes(WarpDashboardDefaults.DenyScheme)
        .RequireAssertion(context => context.Resource is HttpContext http
            && http.Request.Headers["X-Api-Key"] == "…"));

app.MapWarpDashboard("/warp").RequireAuthorization("WarpApiKey");

What is gated

Everything under the route prefix. Conventions apply to the SPA shell (/warp, /warp/{**path}), the SPA's static assets (/warp/assets/...), dashboard extension JS (/warp/_ext/...), every REST endpoint under /warp/api/..., and the SignalR hub — including its negotiate request and WebSocket upgrade.

The dashboard's own endpoints serve its embedded assets, rather than static-file middleware, because StaticFileMiddleware stands down once routing has matched an endpoint and the shell's catch-all route matches every asset path. Conditional requests still work — assets answer If-None-Match / If-Modified-Since with a 304.

The built-in login is the one deliberate exception: it gates the API and hub but leaves the shell and its assets anonymous, because the shell renders the login form and needs its own JavaScript to do so.

Warp owns every path under the prefix

Because the shell's catch-all route claims {prefix}/{**path}, content your own app serves under the dashboard's prefix is no longer reachable — in 3.x the dashboard was middleware and unmatched paths continued down the pipeline. If you were serving, say, wwwroot/warp/logo.png and pointing LogoUrl at it, move it outside the prefix. Host endpoints with literal routes still win over the catch-all; only middleware-served content is affected.

Route prefix

The prefix is normalized to a leading slash with no trailing slash, so "warp", "/warp" and "/warp/" are equivalent. Mounting at the application root ("/") throws — the catch-all would swallow every request in your app.

Upgrading from 3.x

The right column uses today's names. MapWarpUI / WarpUIOptions / namespace Warp.UI were renamed to MapWarpDashboard / WarpDashboardOptions / namespace Warp.Dashboard in 6.0 — see the 6.0 release notes.

3.x	Now
`app.UseWarpUI(...)`	`app.MapWarpDashboard(...)` — returns an endpoint builder
`options.Authorization = new MyFilter()`	an authorization policy + `.RequireAuthorization("...")`
`options.UnauthorizedRedirectUrl = "/login"`	your scheme's `LoginPath` (ASP.NET adds `returnUrl` and an access-denied path)
`options.UseBuiltInLogin<T>()`	`services.AddWarpDashboard().AddBuiltInLogin<T>()` + `.RequireWarpDashboardLogin()`
`new LocalRequestsOnlyAuthorizationFilter()`	`.RequireLocalRequests()`
`using Warp.UI.UIMiddleware;`	`using Warp.Dashboard;`

If you wrote your own `IWarpAuthorizationFilter`

Which replacement you want depends on what your filter looked at, because that decides whether "no" can mean challenge.

It consulted the signed-in user — a role, a claim, a permission keyed on ctx.User. This is the case the change was made for: your filter becomes a requirement plus a handler, and ASP.NET picks challenge or forbid for you.

// 3.x — one bool for three different answers
public class WarpAuthFilter : IWarpAuthorizationFilter
{
    public bool Authorize(HttpContext ctx) =>
        ctx.User.Identity?.IsAuthenticated == true
        && ctx.RequestServices.GetRequiredService<IPermissionService>()
              .HasAsync(ctx.User, "warp.dashboard").GetAwaiter().GetResult();
}

options.Authorization = new WarpAuthFilter();
options.UnauthorizedRedirectUrl = "/login";

// 4.0 — the authentication half is the framework's job, so drop it
builder.Services.AddAuthorizationBuilder()
    .AddPolicy("WarpDashboard", policy => policy
        .RequireAuthenticatedUser()
        .AddRequirements(new WarpDashboardRequirement()));

app.MapWarpDashboard("/warp").RequireAuthorization("WarpDashboard");

with the handler shown above — the .GetAwaiter().GetResult() becomes an await. Delete your IsAuthenticated check: RequireAuthenticatedUser() is what makes an anonymous caller challenge to your LoginPath instead of dead-ending on a 401, and it is the whole point of the upgrade. Delete UnauthorizedRedirectUrl too — your scheme's LoginPath and AccessDeniedPath now cover both answers separately.

It looked at anything else — an API key header, an IP allowlist, a shared secret, a feature flag. Signing in cannot satisfy a rule like that, so the answer is always 403. A plain RequireAuthorization would try to challenge the anonymous caller instead, and in a host with no authentication scheme registered ChallengeAsync throws. Pin the deny scheme, as shown under Localhost only, and denials render as 403:

builder.Services.AddWarpDashboard();   // registers the deny scheme

builder.Services.AddAuthorizationBuilder()
    .AddPolicy("WarpDashboard", policy => policy
        .AddAuthenticationSchemes(WarpDashboardDefaults.DenyScheme)
        .RequireAssertion(context => context.Resource is HttpContext http && /* your check */));

RequireAssertion receives the HttpContext as context.Resource, which is how your filter's HttpContext parameter carries over. Fail closed when it is not an HttpContext — the pattern above does.

If your filter did both — an identity check and a non-challengeable one — keep the schemes off the policy and split the rules: identity requirements in the policy (so anonymous still challenges) and the extra rule as its own requirement returning failure.

Two smaller behaviour changes to know about:

GET {prefix}/api/auth/status only exists with the built-in login. It is anonymous by necessity (it is the pre-login probe), so mapping it unconditionally would bypass whatever gate you applied and answer a constant true — wrong under a host policy, and a recon signal on a dashboard meant to be loopback-only.
Mapping two dashboards while the built-in login is registered now throws. One cookie scheme has one cookie name and one path, so sign-in silently failed on all but the last one mapped.

IWarpAuthorizationFilter and LocalRequestsOnlyAuthorizationFilter are gone. A bool-returning filter could not distinguish "not signed in" from "not permitted", so both produced a bare 401, and UnauthorizedRedirectUrl — which redirected on every denial — bounced an authenticated-but-unpermitted user between the dashboard and the sign-in page forever. Being synchronous, it also forced a blocking .GetAwaiter().GetResult() on any permission check that read a database. Authorization policies fix all three.

AddDataProtection() is no longer needed for the dashboard — the cookie handler brings it.
